LR-SL0820A
Street Lighting
Introduction
Specification
Accessories
Downloads
. Voltage: AC 90-305V
. Wattage: 30～100W/ 110～200W/ 210～280W
. Efficacy: 130±5 lm/W
. Color Temperature: 3000/4000K
. Applications: Main roads and secondary main roads etc.
. Patented ceramic heat dissipation technology, based on XQ2 ceramic pixel platform, high efficient and long lifespan
. No wire power design, supporting hot swapping, safe and reliable
. Structural design of air convection and proximal cooling patented technology (patent number: 201721133174.0)
. High temperature sintering technology, improving cooling performance and seismic performance
. StarRiver intelligent dimming system, allowing further energy conservation
. Modular design, easy to installation and maintenance
| Wattage | CCT | Input Voltage | Optic | Enclosure Color | Options | Remark |
| 30~100W | 3000K | 90-305VAC | J25 | BR=Bronze RAL8019 | P = Photocell | Street lamp controller PLC |
| 110~200W | 4000K | JR32 | WH=White RAL9010 | D = Dimming 0-10V PWM | 2.4GHz | |
| 210~280W | GR=Grey P8121 | A = Adjustable bracket |

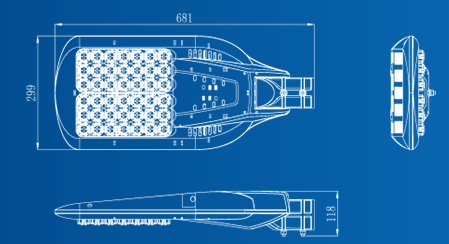

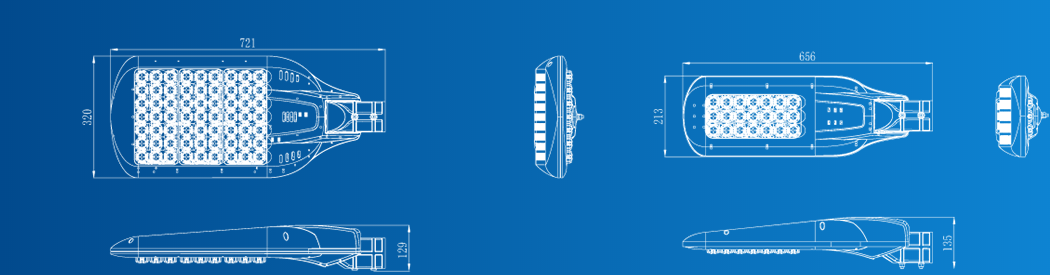

Dimensions (mm)
Technical Parameters
| Model | Input Voltage | Wattage | Power Factor | Efficacy | IP Rating | IP Rating | Mounting |
| LR-SL0820A | 90～305VAC | 30~100W | ≥0.95 | 130±5 | 70 | IP66 | ￠50～60(mm) |
| 110~200W | |||||||
| 110~200W |
| Control Mode | Enclosure Color | Lifetime | Operating Environment |
| PLC/2.4GHz (Zigbee) | Bronze RAL8019 White RAL9010 Grey P8121 | 150000 hrs to 70% lumen maintenance (at 25 ℃) | -40 ℃～+55 ℃ |
