LR-SL0820B
Street Lighting
Introduction
Specification
Accessories
Downloads
. Input voltage：AC 90-305V
. Wattage：70-250w
. Efficacy:120lm/W (4000k)
. Color Temperature：3000K/4000K
. Applications ：Main roads and secondary main roads etc.
. Various optic lens models, offering multiple street lighting solutions.
. High-quality ceramic heat sink, no PCB, heat dissipation efficiency greatly enhanced.
. Structural design of air convection, honeycomb and proximal cooling, ensuring fastest heat transmission.
. Hollow-out structure, effectively reducing wind resistance, making luminaires safer and more reliable.
. No wire connection between module group and housing, easy assembly and maintenance.
. Buckle design, free of other tools in field operation, saving time and trouble.
. Intelligent dimming system, allowing further energy conservation.
Order Information
| Wattage | CCT | Input Voltage | Optic | Enclosure Color | Options | Remark |
| 1 = 40W | 30 = 3000K | 1 = 90-305VAC | K05 | BR=Bronze RAL8019 | P = Photocell | Street lamp controller PLC |
| 2 = 70W | 40 = 4000K | 2 = 347-480VAC | WH=White RAL9010 | D = Dimming 0-10V PWM | ||
| 3 = 110W | GR=Grey P8121 | A = Adjustable bracket | ||||
| 4 = 140W | ||||||
| 5 = 180W | ||||||
| 6 = 220W | ||||||
| 7 = 250W |
| Control Mode | Enclosure Color | Lifetime | Operating Environment |
| PLC/2.4GHz (Zigbee) | Bronze RAL8019 | 150000 hrs to 70%lumen maintenance (at 25 ℃) | -40 ℃～+55 ℃ |
White RAL9010 | |||
| Grey P8121 |

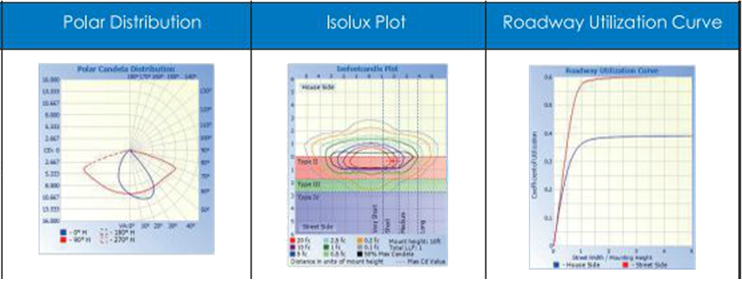

Optical Features

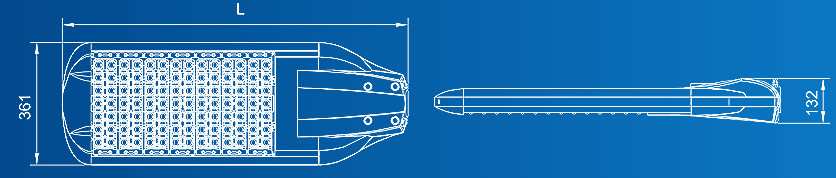

Dimensions
