• LR-SL0830A

LR-SL0830A

Street Lighting

  • LR-SL0830A

Introduction

Specification

Accessories

Downloads

. Voltage: AC 90-305V


. Efficacy: 120lm/W (4000k)


. Color Temperature: 3000K/4000K


. Light Pole: ¢50mm-60mm


. Applications: Main roads and secondary main roads, urban expressways, parking lots, etc


. Classy arc-shaped design with a concise and simplified style.


. High-quality aluminum die-cast forming, durable and reliable.


. Ceramic heat sink, no PCB, heat dissipation efficiency greatly enhanced.


. Structural design of air convection, honeycomb and proximal cooling, ensuring fastest heat transmission.


. Hollow-out structure, effectively reducing wind resistance, making luminaires safer and more reliable.


. Multiple light distribution lens available, meeting various application requirements.


. Modular design of luminairet panel, making for convenient maintenance.


. Intelligent dimming system, allowing further energy conservation.





Order Information



Power WattageCCTInput VoltageOpticEnclosure ColorOptionsRemark
130 =130W30=3000K1 =90~305VACK05BR=Bronze RAL8019
WH=White RAL9010
GR=Grey P8121
P = Photocell
D = Dimming 0-10V PWM
A = Adjustable bracket
Street lamp controller PLC
150 =150W40=4000K
160 =160W
260 =260W
090 =90W
120 =120W
050 =50W
060 =60W
080 =80W

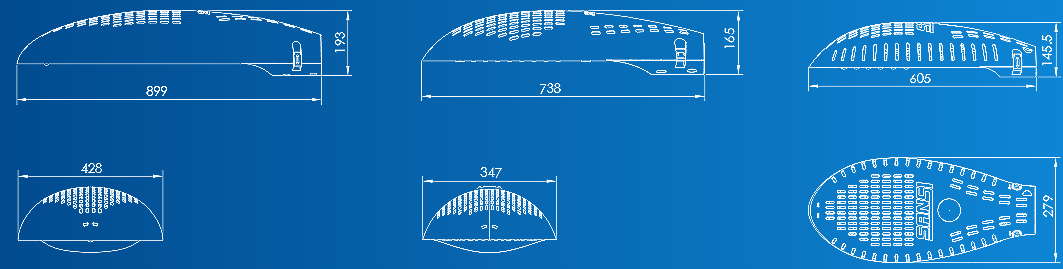

Dimensions (mm)
