• LR-IL0822A

LR-IL0822A

Industrial Lighting,High/Low Bay Light

  • LR-IL0822A

Introduction

Specification

Accessories

Downloads

. Input Voltage: 90-305VAC


. Wattage: 40W 70W 110W 140W 180W 220W 250W 280W 320W 360W 410W


. Efficacy: 120lm/W


. Color Temperature: 4000K/5000K


. Applications: Factory, School, Meeting room, Gas station, etc;


. LED light source is designed with modular structure. Quantity of modular unit is adjustable to achieve different rate of power, thus meeting various dimming needs on different road conditions.


. Adopt module light design for easy and fast servicing. LED light source can be easily accessed. No need to dissemble the whole light.


. Ceramic pixel module adopts the structural design of air convection, honeycomb and proximal cooling, ensuring fastest heat transmission. Service life of the light is much prolonged and weight of the light is also sharply reduced.


. Highly effective LED chip, pro-environment and remarkable energy conservation.


. Intelligent dimming, supporting second energy-saving and emission reduction.


. Multiple installation methods. Applicable in many installation environment.


Order Information



ModelWattageColor TemperatureInput VoltageOpticsOptionRemarkEnclosure Color
LR-IL0822A040 =40W40 = 4000K1 =90-305VACLE

D = Dimmable


PWM


RS485


0~10V


Dali


PLC


WH = White RAL9010


WA=Original Aluminium RAL9006


BR=Bronze RAL8019

LR-IL0822B070 =70WK81
110 =110W
140 =140W
180 =180W
220 =220W
250 =250W
280 =280W
320 =320W
360 =360W
410 =410W

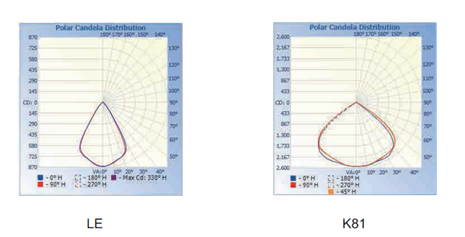

Optical Features

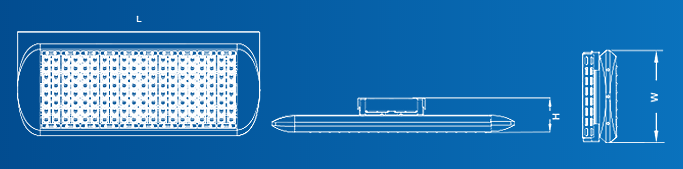

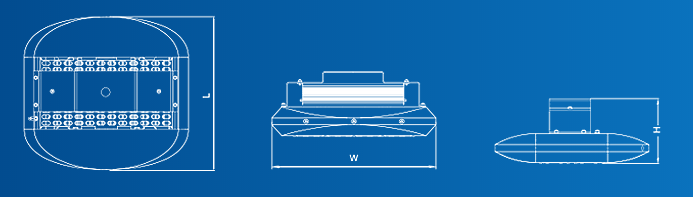

Dimensins



Technical Parameters
