LR-VMS01
Variable Message Sign
Introduction
Specification
Accessories
Downloads
. EN 12966 compliance
. SMD LED with Optical Lens design
. Applications:VMS、LCS、VSLS
. EN 12966 compliance
. SMD LED with Optical Lens design
. Meet B6, L3, C2, R3 class level
. Support LED failure detection
. Real-Time monitoring system and feedback system
. Power supply redundant backup
. Optical lens made of anti-UV PC material, avoiding yellowing on the lens
. No louver design, preventing snow from piling up in bad weather
. No fan design

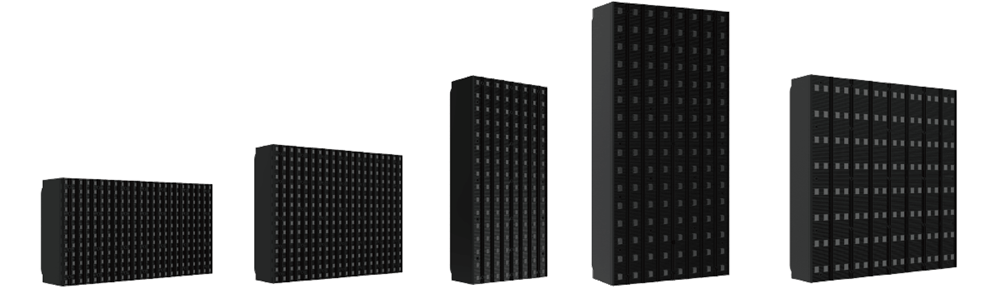

Product Pictures
| MODEL | P10 | P12 | P15 | P20 | P30 |
| Pixel Pitch | 10mm | 12mm | 15mm | 20mm | 30mm |
| LED | SMD | SMD | SMD | SMD | SMD |
| Module Size (W x H) | 240 x 120mm | 240 x 180mm | 120 x 240mm | 160 x 320mm | 240 x 240mm |
| Module Resolution (W x H) | 24 x 12 | 20 × 15 | 8 x 16 | 8 x 16 | 8 x 8 |
| Contrast Ratio | R3 | ||||
| Color | C2 | ||||
| Beam Width | B6 | ||||
| Brightness | L3 | ||||
| Brightness Level | 100 level | ||||
| Communication | RS485、RS232、RJ45、3G、4G、GPRS | ||||
| Protocol | Profibus，TCP/IP、NTCIP | ||||
| Input Voltage | 88 ~ 264 VAC | ||||
| Max. Power Consumption | 655 W/㎡ | 555 W/㎡ | 485 W/㎡ | 340 W/㎡ | 310 W/㎡ |
| Cabinet Material | Aluminum | ||||
| Serviceability | Rear | Rear | Rear | Rear | Rear |
| IP Rating (Front / Rear) | P3 | ||||
| Operating Temperature | T3 | ||||
| Storage Temperature | -40 ~ +60 ℃ | ||||
| Operating Humidity | <95% | ||||
| Storage Humidity | <95% | ||||
| LED Lifetime | 100,000 hrs | ||||
Compliant Standard | EN12966 | ||||
