LR-POEPG03
3CH Gigabit PoE Switch
Introduction
Specification

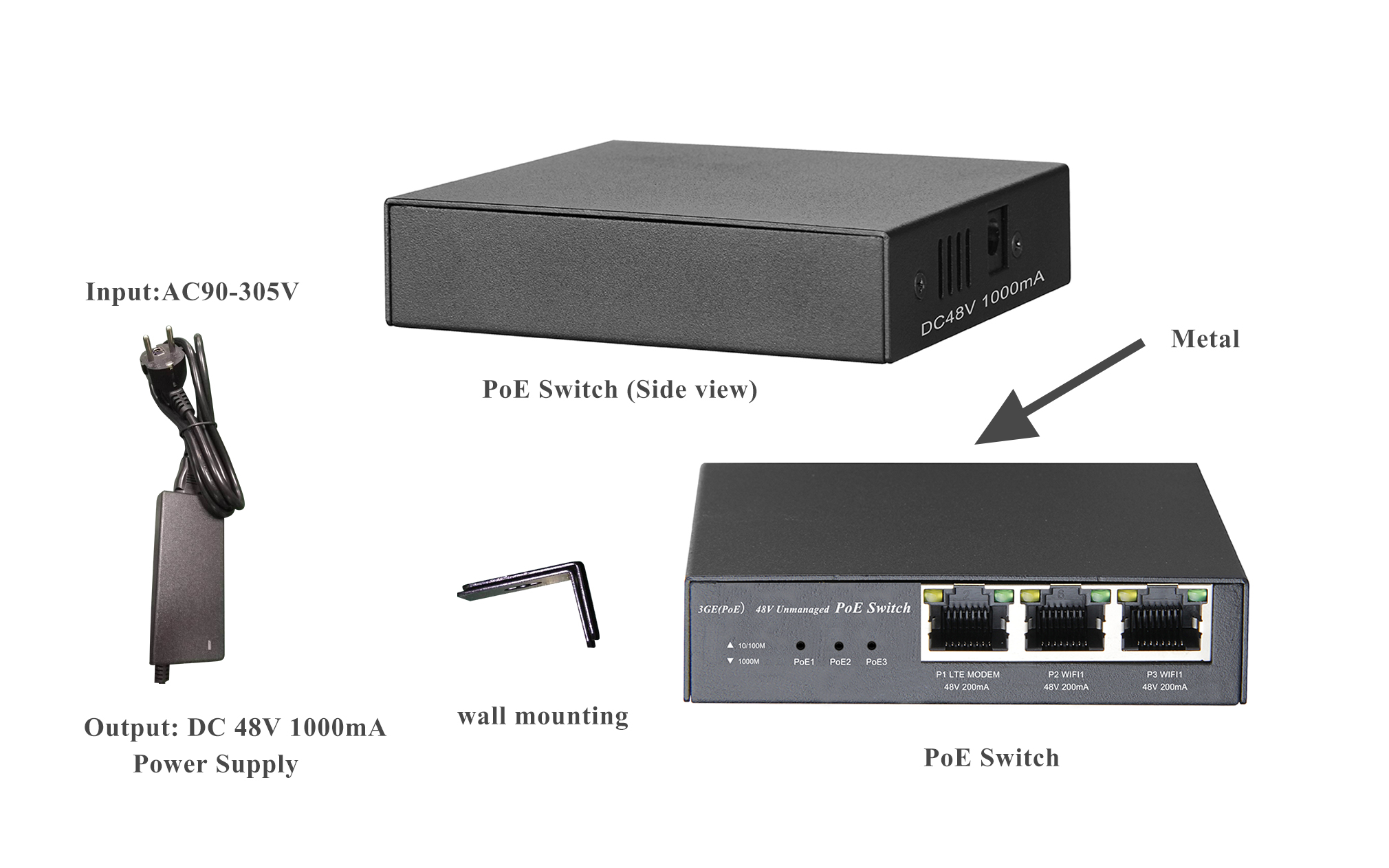

Accessories
Downloads
• Conforms to IEEE802.3,IEEE 802.3u, IEEE 802.3ab, IEEE802.3af, IEEE802.3at
• Provides 3 10/100/1000Base-TXports
• Provides 3 PoE injectorand 48W power adapter
• High back-plane bandwidth10Gbps
• IEEE802.3x Flow control
| Item | Description |
| Summarize | |
| Fixed port | 3 10/100/1000Base-TX ports. |
| LED Indicators | PWR, Link/Act |
| Input voltage | 100V～240V AC，50/60Hz (for power adapter) 48VDC (for switch) |
| Power consumption | 50W (48W for PoE) |
| Operating temperature | 0℃～40℃. |
| Storage temperature | -10℃～70℃. |
| Relative humidity | 20%～85% (non-condensing). |
| Thermal methods | Fanless. |
| Switching capacity | 10G. |
| MAC address table | 2K. |
| Traffic control | IEEE 802.3x full-duplexflow control. |
| PoE | |
| PoE port | 3 10/100Base-TX ports. |
| PoE Standard | IEE802.3af,IEEE802.3at, port 1 max up to 9.6W(48V/200mA) port 2&3 each max up to 19.2W(48V/400mA) |
| Pin assignment | V+ (RJ45 Pin 4, 5), V-(RJ45 Pin 7, 8). |
