LR-POET24WN
Outdoor Extender
Introduction
Specification
Accessories
Downloads
• Extends the range of PoEand Ethernet an additional 100 meters
• No additional power supply is required
• Full-rate network throughout the wholeextended distance
• Operating Ambient Temperature:-40 to 75℃
• IP65 case and connector
• Easy plug-and-play installation
• RJ45 port Surge protection level 10/700uS DM 2KV CM6KV
| Item | Description |
| No. of channels | 1 |
| Pass Through Data Rates | 10/100/1000 Mbps half/fullduplex |
| Power over Ethernet input | PinAssignment and Polarity: Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+) |
| Power over Ethernet Output | PinAssignment and Polarity: 7/8(-), 4/5 (+) Output Power: up to 30W |
| Input Voltage | 20-25Vdc |
| Output Voltage | 20-25Vdc |
| Indicators | LEDindicators are located on the RJ45 connector Powerindicator: PoE enabled Network indicator: Link/Act |
| Connectors | IP65 protection RJ45connector |
| Network cables | Shielded category 5 (orhigher) |
| Dimensions | 210mm x 48mmx 38mm |
| Mounting | Wall of shelf |
| Environment | Outdoor |
| Environmental Conditions | OperatingAmbient Temperature:-40 to 75℃ OperatingHumidity: Maximum90%, Non-condensing StorageTemperature:-40 to 75℃ StorageHumidity: Maximum 95%, Non-condensing |
| Surge Protection: | |
| Maximum discharge voltagewire-PE (10/700us) | 6kV |
| Maximum discharge voltagewire-wire (10/700us) | 2kV |
| Response Time | ≤1ns |
| Protected pin | 1/2; 3/6; 4/5; 7/8 |

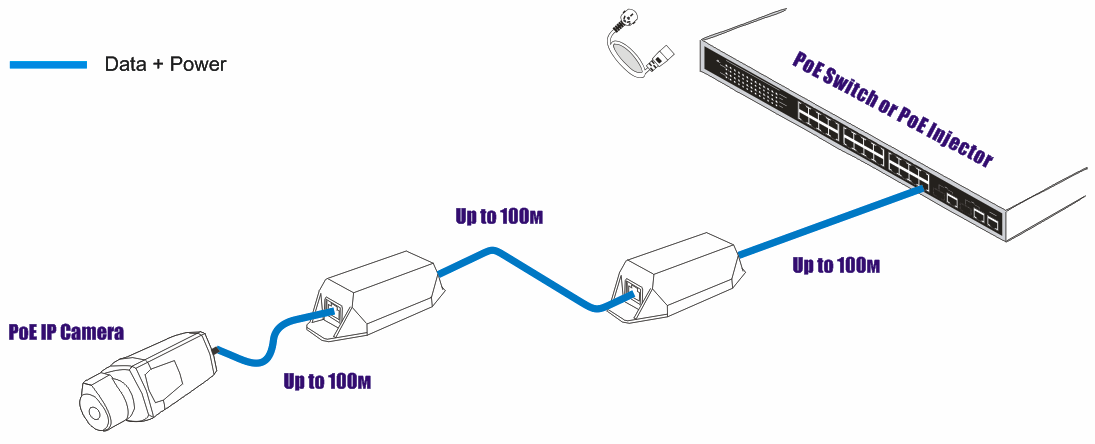

Application
