LR-BT60W
60W PoE Ethernet repeater
Introduction
Specification
Accessories
Downloads
LR-BT60W is a 60W PoE Ethernet repeater and uses advanced network cable drive and power supply technology to extend 1000M Ethernet signal to 200 meters, greatly extending the transmission distance and providing PoE at the same time. It is widely used in security surveillance and network project.
• Provide 2 10/100/1000Mbps Ethernet ports, one PoE input port, one PoE output port, which can meet the requirements of local monitor, long distance transmission and PoE power supply.
• PoE power supply is compatible with End-Span and Mid-Span (For PoE input port).
• Excellent circuit isolation protection, effectively improve product's lightning protection, ESD and anti-interference ability.
• Appearance and structure: solid and delicate, it is easily installed on the wall and desktop.
• Operation: plug and play, no setting required.
• PoE Ethernet Repeater1 PCS
• MIT Hangers 2 PCS
• User Manual 1 PCS
| Item | Description | |
| Power | Power Supply | PoE Power Supply |
| Consumption | <6W | |
| Ethernet Port | Ethernet Port | PoE IN Port: 10/100/1000Mbps, PoE Input Port PoE OUT Port:10/100/1000Mbps. PoE Output Port |
| Transmission Distance | 100m About the relationship between distance and power, Please refer to table 1 | |
| Trnasmission Medium | Cat5e/6 | |
| PoE Protocol | IEEE802. 3af/at. Max PoE power is 54W | |
| PoE PIN / Power | 12,45(+) / 36,78(-) / Max 60W (Force) | |
| Network Switch | Network Standard | IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T |
| Network Delay | <20us | |
| Waterproof | Machine | IP65 |
| Protection | ESD | 1b Air Discharge Level 3 Per: IEC61000-4-2 |
| Communication Lightning Protection | Per： IEC61000-4-5 Level 3 | |
| Environments | Working Temperature | -40~75℃ |
| Storage Temperature | -40~85℃ | |
| Humidity (Non-Condensing) | 0~95% | |
| Mechanical | Size (L*W*H) | 193.6mm * 72mm * 38mm |
| Material | Aluminum | |
| Color | Black | |
| Weight | >200g | |

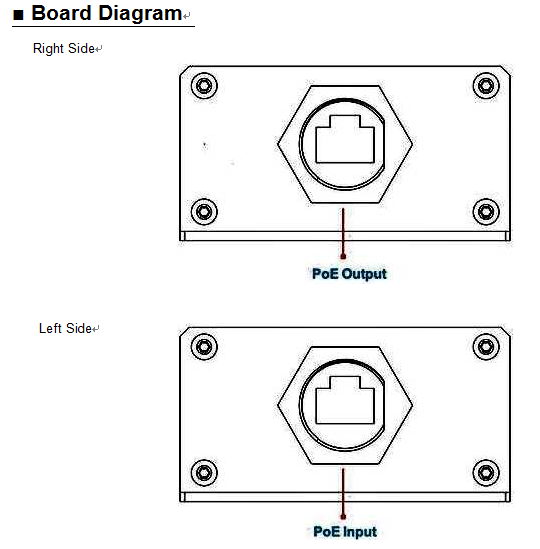

Board Diagram
