LR-SC02A
Melt free fiber
Introduction
Specification
Accessories
Downloads
Single-mode 1 core + 2*0.5 power wire

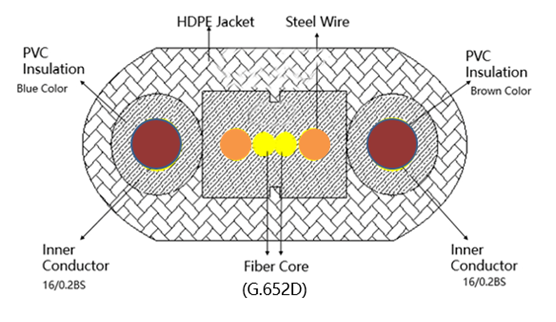

Product structure
Conductor | Structure | 16/0.2BS | |
| Twisting direction | S :23mm | ||
Insulation | Material | ||
| Color | Blue and Brown | ||
| Outer diameter | 1.90 | ||
| Insulation thickness | 0.50 | ||
| Inner model | 1.02 | ||
| Outer model | 1.90 | ||
Jacket | Material | 7042PE+T03PP proportion 2:1 with masterbatch | |
| Color | Black | ||
| Outer diameter | 3.6-8.0 | ||
| Outer model | 3.6-8.0 | ||
| Inner model | 2.1-3.2-7.6 | ||
| Conductor | Structure | 16/0.2BS | |
| Twisting direction | S :23mm | ||
